TUBE FURNACE – SINGLE ZONE 1200°c to 1850 °c

elite
Overview

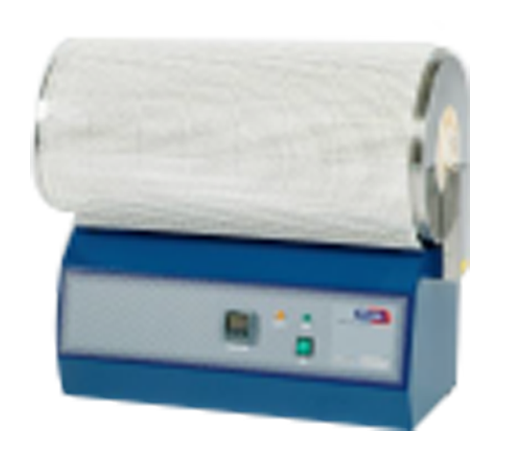

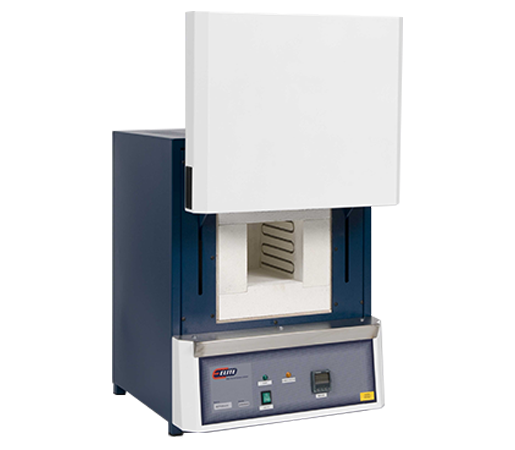

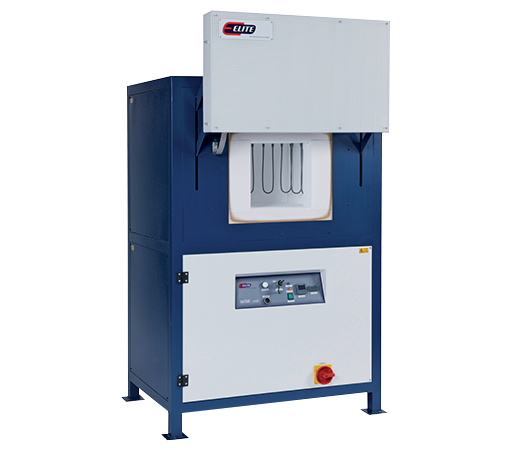

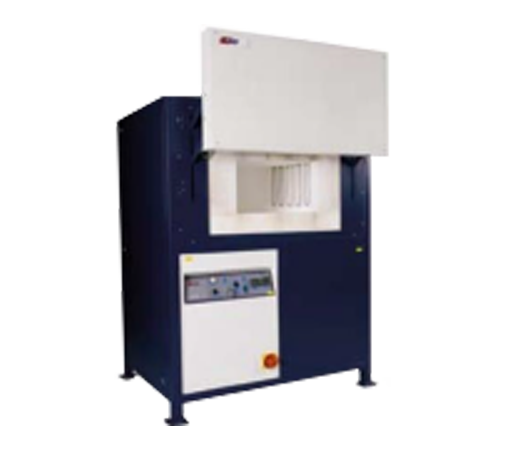

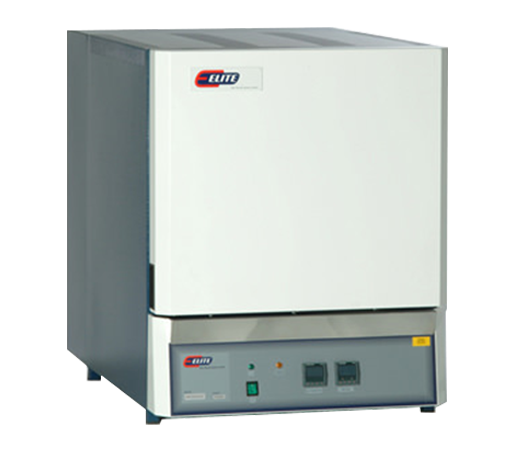

TSH – This comprehensive range of furnaces offers 43 standard  models with an operating temperature range of 1200 °c to 1850 °c. The 1200,1400,1500,& 1600 °c models are all bench mounted and have protective outer mesh covers for improved operator safety with all other models being floor.

MODEL:
  • TSH 12
  • TSH 14,15 & 16
  • TSH 17
  • TSH 18

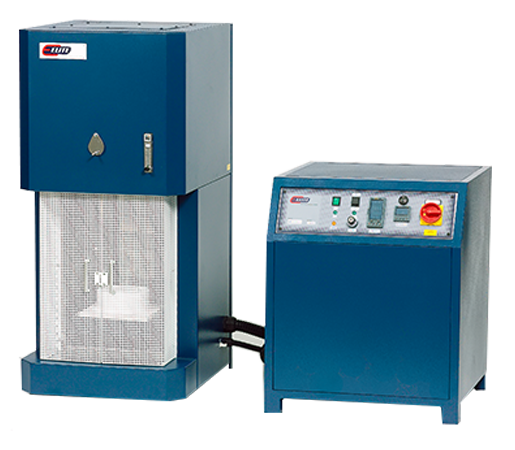

  • TSV175
  • TSH185
Model Max Temp (•C) Max Cont (•C) Heated Length (mm) Max Power (Kw) Volts Phase Ext Dimensions (mm) Hx W x D Nett Wt. {kg)

Worktubes (l.D x Length) nom Short  Long

TSH12125/250 1200 1150 250 0.8 230 1 560x335x315 11 16 x 350 16 x 500
TSH12125/500 1200 1150 500 1.2 230 1 560x585x315 16 16 x 600 16 x 750
TSH12138/250 1200 1150 250 1.0 230 1 560x335x315 12 25 x 350 25 x 500
TSH12138/500 1200 1150 500 1.7 230 1 560x585x315 16 25 x 600 25 x 750
TSH12150/300 1200 1150 300 1.7 230 1 560x385x315 14 38 x 400 38 x 600
TSH12150/610 1200 1150 610 2.0 230 1 620x700x330 21 38 x 700 38 x 900
TSH12/75/610 1200 1150 610 2.8 230 1 620x700x330 26 60 x 900 60 x 1050
TSH12175/750 1200 1150 750 3.0 230 1 620x840x330 30 60 x 900 60 x 1050
TSH121100/940 1200 1150 940 4.3 230 1 650x1025x370 45 75 x 1050 75 x 1500
TSH14/25/180 1400 1400 180 1.5 (3.6) 230 1 610x585x415 22 25 x 600 25 x 750
TSH14/50/ 180 1400 1400 180 1.5 (3.6) 230 1 610x585x415 22 50 x 600 50 x 800
TSH14/25/450 1400 1400 450 4.5 ( 5.8) 230 1 715x1000x460 70 25 x 1050 25 x 1200
TSH14/50/450 1400 1400 450 4.5 ( 5.8) 230 1 715x1000x460 70 50 x 1050 50 x 1200
TSH14/75/450 1400 1400 450 4.5 ( 5.8) 230 1 715x 1000x460 70 75 x 1050 75 x 1200
TSH14/25/610 1400 1400 610 6.0 (10.1) 230 1 715x1150x460 75 25 x 1200 25 x 1350
TSH14/50/610 1400 1400 610 6.0 (10.1) 230 1 715 x 1150x460 75 50 x 1200 50 x 1350
TSH14/75/610 1400 1400 610 7.0 (10.1) 230 1 715 x 1150 x 460 75 75 x 1200 75 x 1350
TSH15/25/180 1500 1500 180 1.5 (3.6) 230 1 610x585x415 22 25 x 600 25x 750
TSH15/50/180 1500 1500 180 1.5 (3.6) 230 1 610x585x415 22 50x 600 50x 800
TSH15/25/450 1500 1500 450 4.5 (5.8) 230 1 715x1000x460 70 25 x 1050 25x 1200
TSH15/50/450 1500 1500 450 4.5 (5.8) 230 1 715x1000x460 70 50x 1050 50x 1200
TSH15175/450 1500 1500 450 4.5 (5.8) 230 1 715x1000x460 70 75 x 1050 75x 1200
TSH15/25/610 1500 1500 610 6.0 230 1 715x1150x460 75 25 x 1200 25x 1350
TSH15/50/610 1500 1500 610 6.0 (10.1) 230 1 715x1150x460 75 50x 1200 50x 1350
TSH15175/610 1500 1500 610 7.0 (10.1) 230 1 715x1150x460 75 75 x 1200 75x 1350
TSH 16/25/180 1600 1600 180 1.5 ( 7.7) 230 1 610x585x415 22 25 x 600 25 x 750
TSH16/50/180 1600 1600 180 1.5 ( 7.7) 230 1 610x585x415 22 48 x 600 48 x 900
TSH 16/25/450 1600 1600 450 5.0 (33.0) 400 3 715x1000x460 70 25 x 1050 25 x 1200
TSH 16/50/450 1600 1600 450 5.0 (33.0) 400 3 715x1000x460 70 48 x 1050 48 x 1350
TSH 16/75/450 1600 1600 450 5.0 (33.0) 400 3 715x1000x460 70 75 x 1050 75 x 1350
TSH15/25/180 1500 1500 180 1.5 (3.6) 230 1 610x585x415 22 25 x 600 25x 750
TSH15/50/180 1500 1500 180 1.5 (3.6) 230 1 610x585x415 22 50x 600 50x 800
TSH15/25/450 1500 1500 450 4.5 (5.8) 230 1 715x1000x460 70 25 x 1050 25x 1200
TSH15/50/450 1500 1500 450 4.5 (5.8) 230 1 715x1000x460 70 50x 1050 50x 1200
TSH15175/450 1500 1500 450 4.5 (5.8) 230 1 715x1000x460 70 75 x 1050 75x 1200
TSH15/25/610 1500 1500 610 6.0 230 1 715x1150x460 75 25 x 1200 25x 1350
TSH15/50/610 1500 1500 610 6.0 (10.1) 230 1 715x1 1 50x460 75 50x 1200 50x 1350
TSH15175/610 1500 1500 610 7.0 (10.1) 230 1 715x1150x460 75 75 x 1200 75x 1350
TSH 16/25/180 1600 1600 180 1.5 ( 7.7) 230 1 610x585x415 22 25 x 600 25 x 750
TSH16/50/180 1600 1600 180 1.5 ( 7.7) 230 1 610x585x415 22 48 x 600 48 x 900
TSH 16/25/450 1600 1600 450 5.0 (33.0) 400 3 715x1000x460 70 25 x 1050 25 x 1200
TSH 16/50/450 1600 1600 450 5.0 (33.0) 400 3 715x1000x460 70 48 x 1050 48 x 1350
TSH 16/75/450 1600 1600 450 5.0 (33.0) 400 3 715x1000x460 70 75 x 1050 75 x 1350
TSH16/25/610 1600 1600 610 7.0 (29.0) 400 3 825x1150x562 75 25 x 1200 25 x 1350
TSH16/50/610 1600 1600 610 7.0  (29.0) 400 3 825x1150x562 75 48 x 1200 48 x 1500
TSH16/75/610 1600 1600 610 8.0 (29.0) 400 3 825x1150x562 75 75 x 1200 75 x 1500
TSH17/75/150 1700 1700 150 4.4 230 1 1500x475x650 180 75 x 600 75 x 900
TSH17/75/300 1700 1700 300 6.0 230 1 1500x625x650 220 75 x 700 75 x 1000
TSH17/75/450 1700 1700 450 9.0 230 1 1500x775x650 265 75 x 900 75 x 1200
TSH18/75/150 1800 1800 150 4.4 230 1 1550x525x650 180 75 x 600 75 x 900
TSH18/75/300 1800 1800 300 6.0 230 1 1550x675x650 220 75 x 700 75 x 1000
TSH18/75/450 1800 1800 450 9.0 230 1 1550x825x650 265 75 x 900 75 x 1200
TSV175/50/200 1750 1750 200 8.3 230 1 1525x940x1000 100 50 x 900 50 x 1200
TSV175/75/350 1750 1750 350 12.0 400 3 1600x940x1000 120 65 x 1000 65 x 1350
TSV175110/350 1750 1750 350 12.0 400 3 1600x940x1000 145 110 x 1000 110 x 1500
TSH185/40/300 1850 1850 300 8.1 230 1 1600x600x575 226 38 x 650 38 x 900
Overview

These unique reactors were developed to solve a number of problems in the lab. They allow the user to run reactions similar to those that have been conducted for many years in the Parr shaker, but offer stirring for better scalability, higher operating temperatures and pressures, and more extensive reactor controls and instrumentation. They also provide elevated pressures while also allowing direct observation of mixing action, color changes, or changes of state. These reactors also provide for convenient operation at moderate pressure and/or for corrosion resistance.

Description

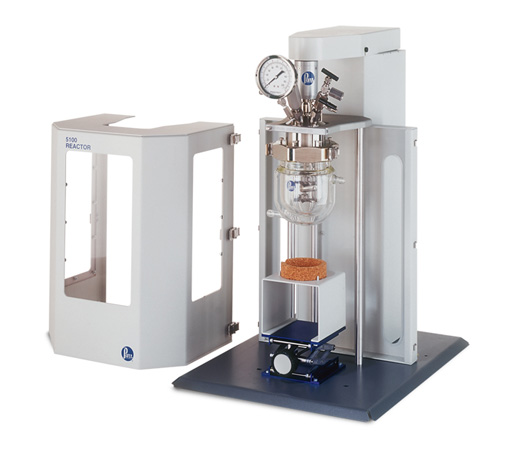

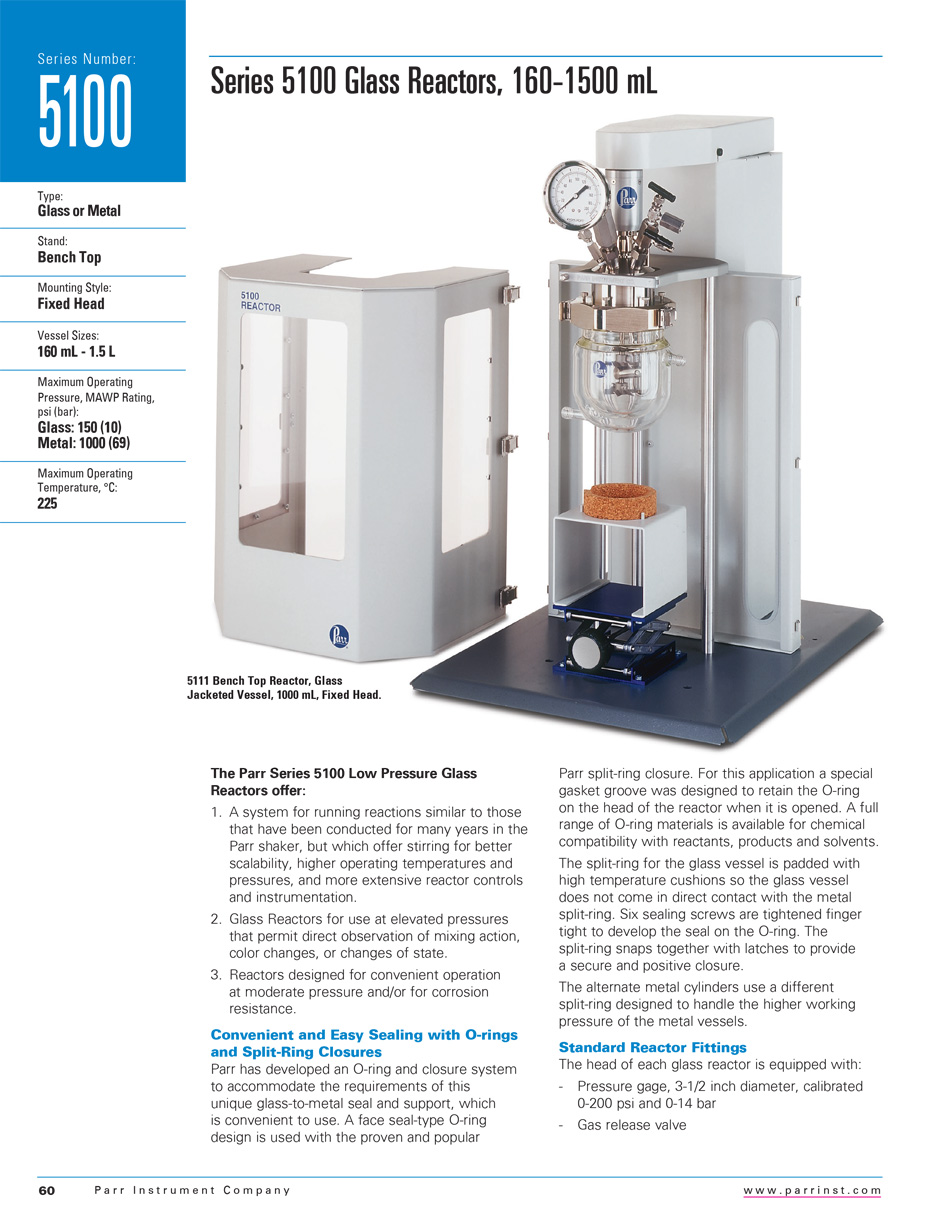

Series 5100 160-1500ml Glass Reactors

These unique reactors were developed to solve a number of problems in the lab. They allow the user to run reactions similar to those that have been conducted for many years in the Parr shaker, but offer stirring for better scalability, higher operating temperatures and pressures, and more extensive reactor controls and instrumentation. They also provide elevated pressures while also allowing direct observation of mixing action, color changes, or changes of state. These reactors also provide for convenient operation at moderate pressure and/or for corrosion resistance.
