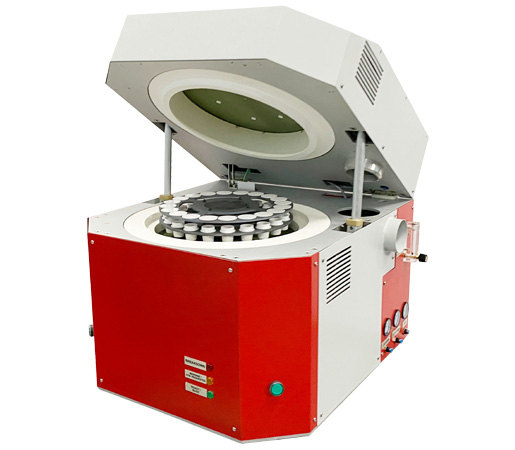

Home > TGA / Proximate Analyzers > TGA 3000 Thermogravimetric Analyzer
Thermogravimetric analyzers (TGA) measure weight change (loss or gain) and the rate of weight change as a function of temperature, time, and atmosphere.
Furnace Temperature Range
|
Ambient to 1000 deg C
|
Temperature Control Precision
|
±2% (or) ±2deg C
|
Ramp Rate
|
10deg C /minute to 50deg C /minute
|
Balance
|
Integrated balance
|
Resolution
|
0.0001g (0.1mg)
|
Sample Size
|
up to 5 grams (Higher range can be offered on request)
|
Number of Samples
|
19 Samples +1 Reference
|
Number of Carousels
|
|
Two (one for Crucibles, one for lids)
|
|
Carousel Material
|
|
High Strength Technical Grade Ceramics
|
|
Weighing Precision
|
|
0.02% RSD (on inert Samples)
|
|
Power Supply
|
|
230V AC ± 10%; 50/60Hz/15A
|
