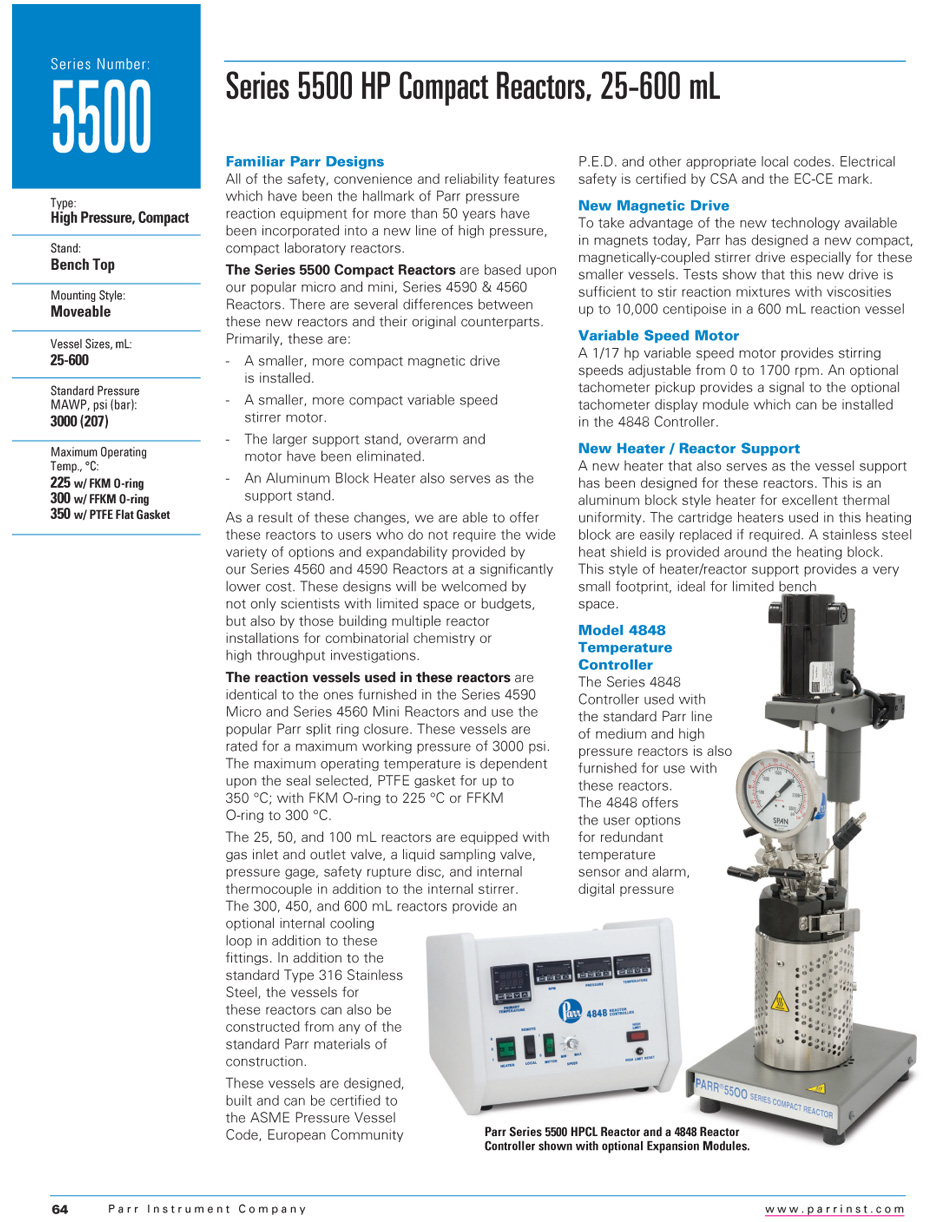

Series 5500 25-600ml compact reactors

Parr Instruments Company USA
Overview
All of the safety, convenience and reliability features which have been the hallmark of Parr pressure reaction equipment for more than 50 years have been incorporated into a new line of high pressure, compact laboratory reactors. (HPCL – reactors.) The Series 5500 HPCL Reactors are based upon our popular micro and mini, Series 4590 & 4560 Reactors. There are several differences between these new reactors and their original counterparts.
Type
High Pressure Compact
Stand
Bench top
Mounting Style
Moveable
Vessel Sizes, mL
25ml to 600 ml
Standard Pressure MAWP Rating, psi (bar)
3000 psi (200 bar)
Maximum Operating Temp. ºC:
225 w/ FKM O-ring
300 w/ FFKM O-ring
350 w/ PTFE Flat Gasket
Description
Series 5500 25-600ml compact reactors

All of the safety, convenience and reliability features which have been the hallmark of Parr pressure reaction equipment for more than 50 years have been incorporated into a new line of high pressure, compact laboratory reactors. (HPCL – reactors.) The Series 5500 HPCL Reactors are based upon our popular micro and mini, Series 4590 & 4560 Reactors. There are several differences between these new reactors and their original counterparts. Primarily, these are:

  • A smaller, more compact magnetic drive is installed.
  • A smaller, more compact variable speed stirrer motor.
  • The larger support stand, overarm and motor have been eliminated.
  • An Aluminum Block Heater also serves as the support stand.

As a result of these changes, we are now able to offer these new reactors to users who do not require the wide variety of options and expandability provided by our Series 4500 Reactors at a significantly lower cost. These new designs will be welcomed by not only scientists with limited space or budgets, but also by scientists building multiple reactor installations for combinatorial chemistry or high throughput investigation
