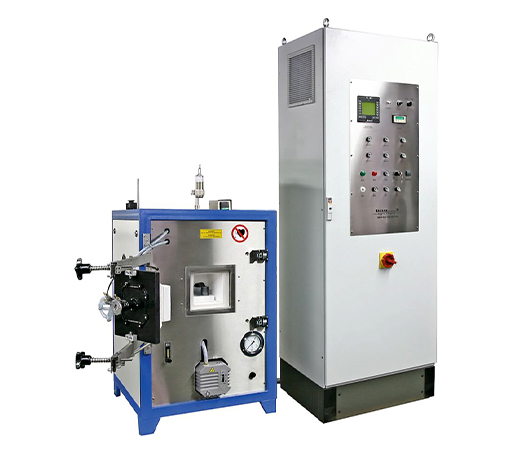

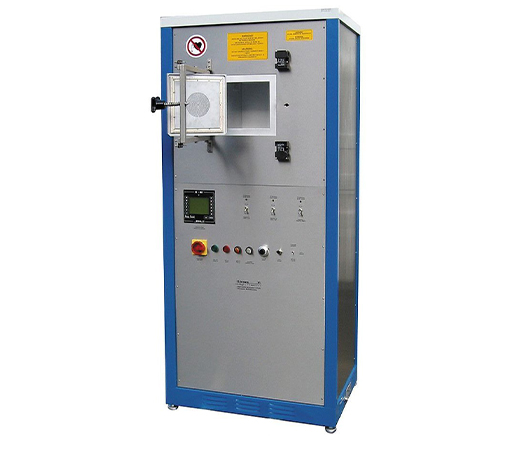

Microwave Chamber Furnace,
High Temperature, 2.45 GHZ, 3.0 L,
TMAX 1200 °C
Applications: Ashing, calcination, melting, sintering
|
Type
|
HTG-1200/0.45N
|
HTG-2400/0.45N
|
HTG-6000/0.45N
|
HTG-10000/0.45N
|
|
HF output power kW
|
1.2
|
2.4
|
6.0
|
10.0
|
|
Inductivity range µH
|
0.2 – 1.7*
|
0.2 – 1.7*
|
0.3 – 2.2*
|
0.3 – 2.2*
|
|
Working frequency, optimal range kHz
|
150-450
|
150-450
|
150-450
|
150-450
|
|
Mains connection kVA
|
(230 V) 1,6
|
(230 V) 3,3
|
(3x 400V) 7.4
|
(3x 400V) 12.4
|
|
Cooling water consumption l/min
|
1.5
|
3
|
6
|
8
|
|
Dimensions HF-Teil (wxdxh) mm
|
432 x 140 x 400
|
432 x 140 x 400
|
432 x 178 x 610
|
432 x 178 x 610
|
|
Weight kg
|
12.7
|
12.7
|
16.3
|
16.3
|
|
HF part incl. cable (wxdxh) mm
|
102 x 204 x 102
|
102 x 204 x 102
|
114 x 292 x 146
|
114 x 292 x 146
|
|
Weight of HF parts without coil and cable kg
|
3.6
|
4.5
|
9.1
|
9.1
|
|
* Optionally other ranges are possible
|
||||
