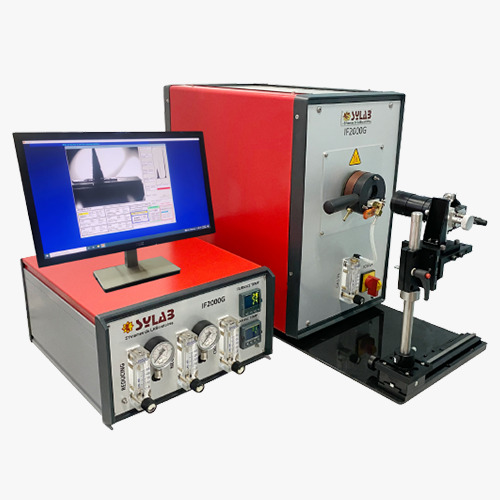

IF2000G-HDBM is an automatic Ash Fusion Analyzer for the determination of the ash fusion points by the mean of image analysis.
Capable to Analyze Biomass and biofuels as per CEN and ISO test methods.
Maximum Furnace Temperature is 1800 °C
The determination uses the most modern technology for monitoring computing, storing results and curves obtained during the test according to the National and International test methods.
|
Fusion Points
|
IT: Initial Deformation Temperature
ST: Softening / Temperature HT: Hemi Sphere Temperature FT: Fluid / Flow temperature |
|
Maximum number of samples per analysis
|
6 samples
|
|
Sample type
|
Cylinder/Cube, Pyramid, Truncated Pyramid and Upright Pyramid
|
|
Sample Shape Identification
|
Automatic
|
|
Furnace Specifications
|
|
|
Furnace Temperature range
|
Ambient to 1750 deg C
|
|
Maximum Furnace Temperature
|
1800 deg C
|
|
Temperature ramp Rate
|
Programmable from 1°C per minute to 12°C per minute
|
|
Temperature Precision
|
+/- 5°C as per
Standard test method at 1064°C (by using 99.98% pure gold wire) |
|
Number of heating elements
|
4 Heating elements
|
|
Camera
|
|
|
Camera Image Resolution
|
1280 x 1024 Pixel
|
|
Image collection
|
Up to 30 frames/sec
|
|
Gas Requirements
|
|
|
Purge Air
|
Nitrogen, 99.5%
|
|
Reducing Mode
|
CO-CO2 Ratio : 60% CO - 40 +/- 5CO2
H2-CO2 Ration : 45% to 55% H2-45% to 55% CO2 Capable to accept individual gases (Analyzer as inbuilt gas mixing facility for the required ratio) |
|
Oxidizing Mode
|
Analyzer has integrated oil free and moisture free air pump which is software controlled
|
|
Electrical Requirement
|
220 V to 240 V, 5/60 Hz, single phase, 18 A
|
IF2000G-HDBM is an automatic Ash Fusion Analyzer for the determination of the ash fusion points by the mean of image analysis.
Capable to Analyze Biomass and biofuels as per CEN and ISO test methods.
Maximum Furnace Temperature is 1750 °C
The determination uses the most modern technology for monitoring computing, storing results and curves obtained during the test according to the National and International test methods.
Once the sample is introduced into the furnace, the operator is free until the end of the analysis. The results and the curves are automatically stored in a DATABASE and automatic reports are generated.
The analyzer is capable to run 6 ash samples, all the dimensions, rounding, form factor, volume are individually computed and stored.
Each sample picture is individually stored and the whole film of the fusion also 1°C by 1°C.
